Tesla coil resonance energy

  • 5K Views
  • Last Post 2 weeks ago
Jagau posted this 10 January 2026

To avoid overloading Fughter's thread, I've created another thread on the Don Smith system.

The first experiment will be to verify, with two 60-turn 2.25-inch PVC coils, what one reel can transmit to the other without a transformer effect, using different coil placements like the one he gave as an example often described in his books. Just a transmitter and a receiver coil.

I will build these two coils and will do a practical demonstration.

The text of this experiment we find in D.S book:

Jagau

What we consider to be empty space is merely a manifestation of unawakened matter. N.T.

Inception posted this 26 January 2026

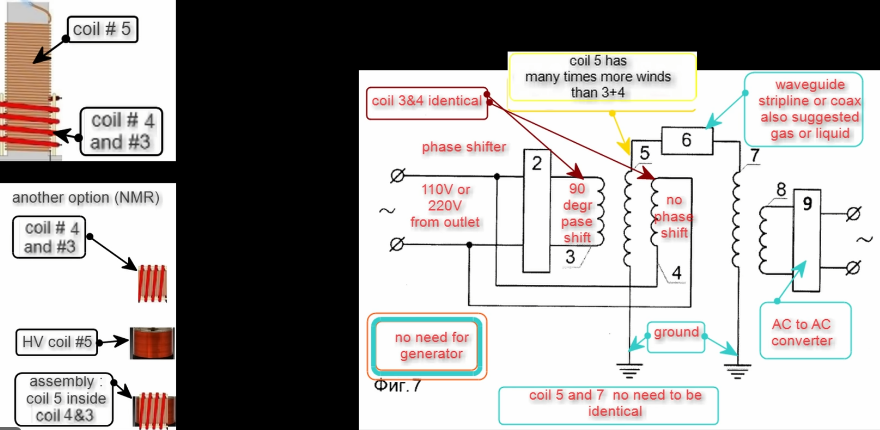

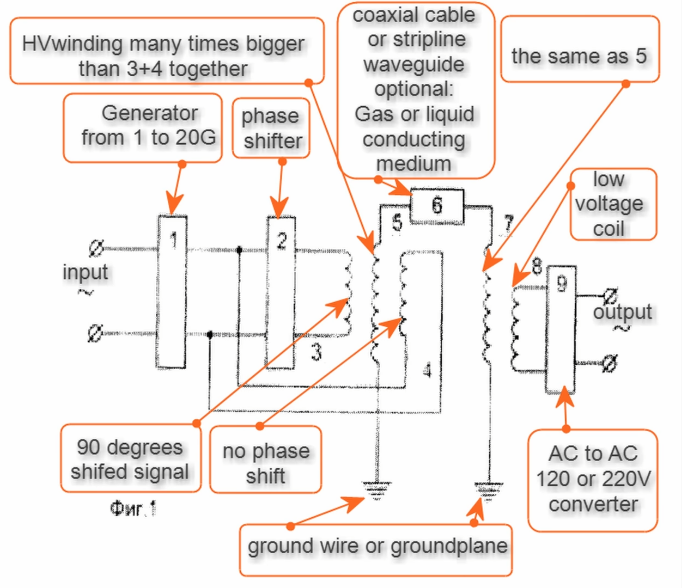

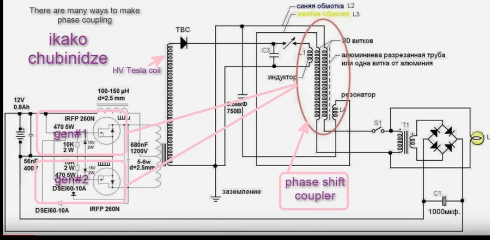

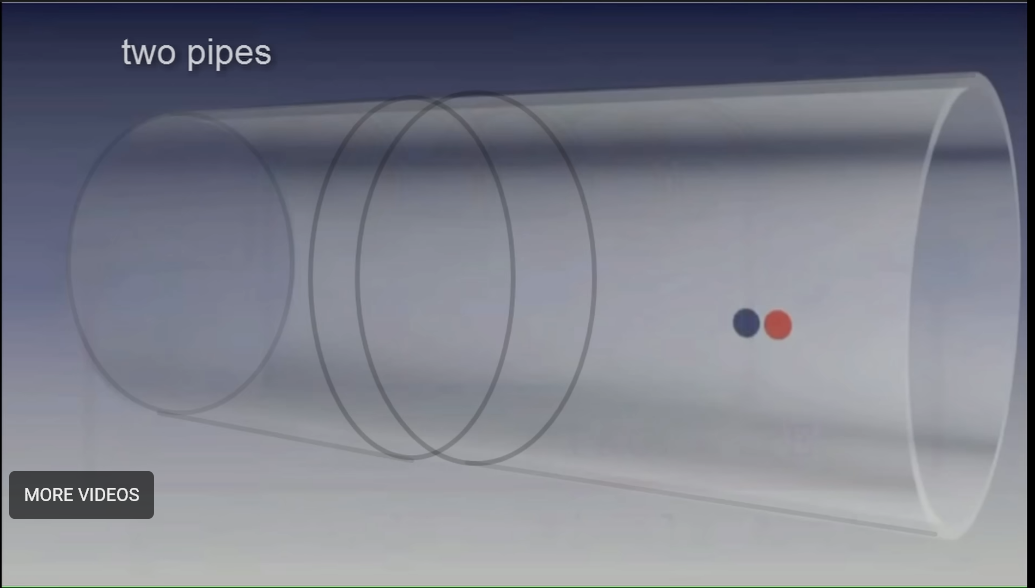

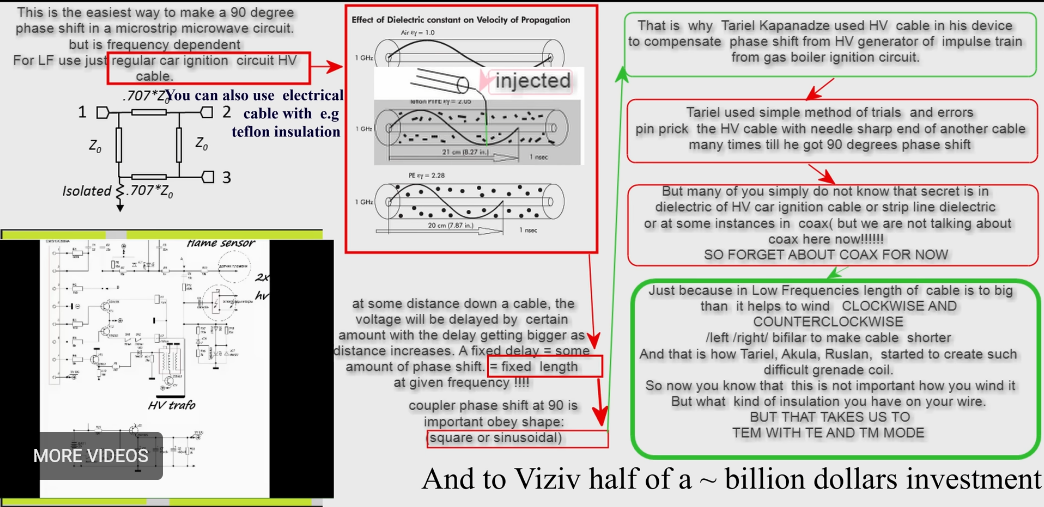

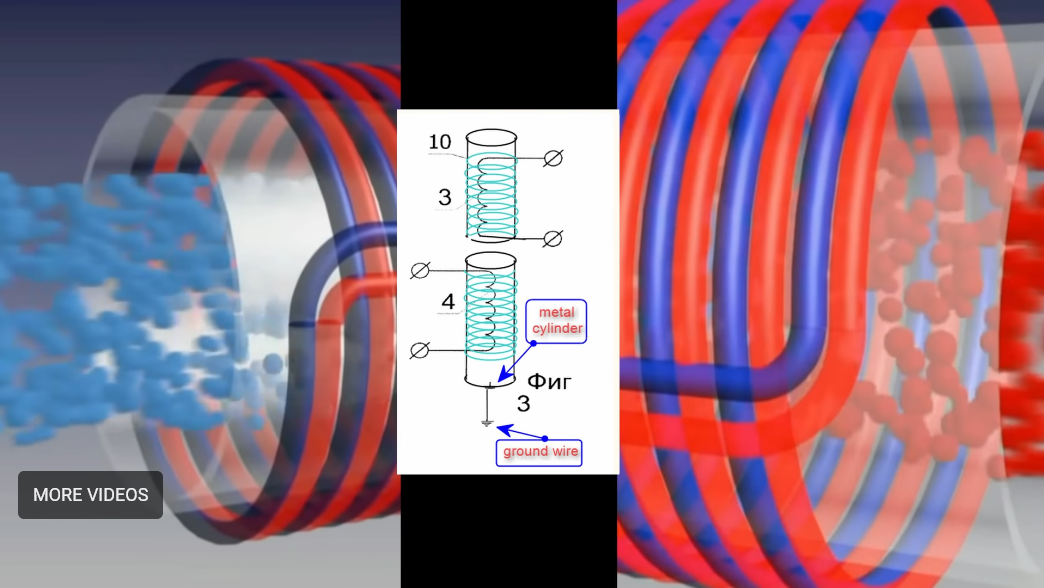

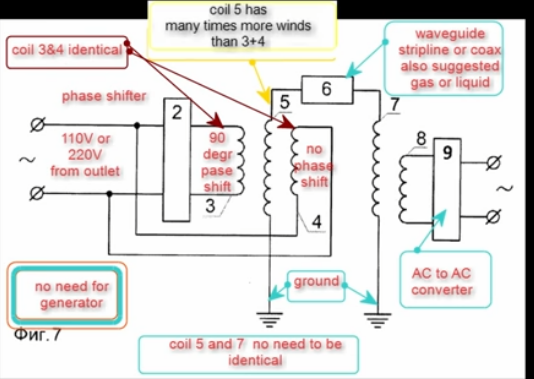

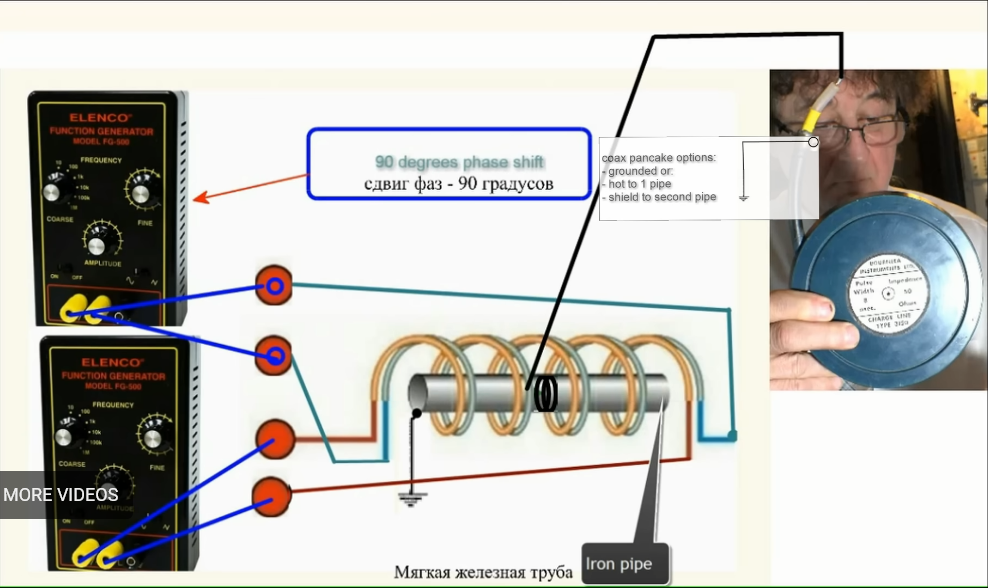

Here are some snapshots of Fernando's video depicting details of the project and similar applications.

These posts can be relocated to another thread if they are distracting.







((Inception)) "You do not know anything until you have practiced." - Richard Feynman

Jagau posted this 28 January 2026

To isolate my generator from the public grid, I built an AC oscillator,battery operated,   capable of varying between 1 and 6 MHz but at very low power. The goal here is to understand D.S. effect before using more power.

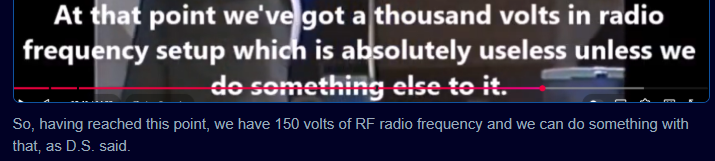

For the same output, as with FG,  three times less power had to be used to achieve the same result. Remember that it's an HF,  RF voltage we need to obtain, which I've done,

the dam will follow.

Photo coming soon.

Jagau

What we consider to be empty space is merely a manifestation of unawakened matter. N.T.

Jagau posted this 29 January 2026

Hundreds of researchers have tried to find the DS effect, as can be seen on various YouTube channels and numerous forums. This leads us to wonder how to pump this extra energy contained within the mass of our planet.

Tesla wanted to share electricity freely with his Magnifying Transmitter, he transmitted this vast amount of energy through the ground to be collected at different points on the planet using tuned receivers.

D.S. tells us that immense quantities of energy are buried in the soil of our planet. Eric Dollard demonstrates the full power of the telluric currents present in the ground.

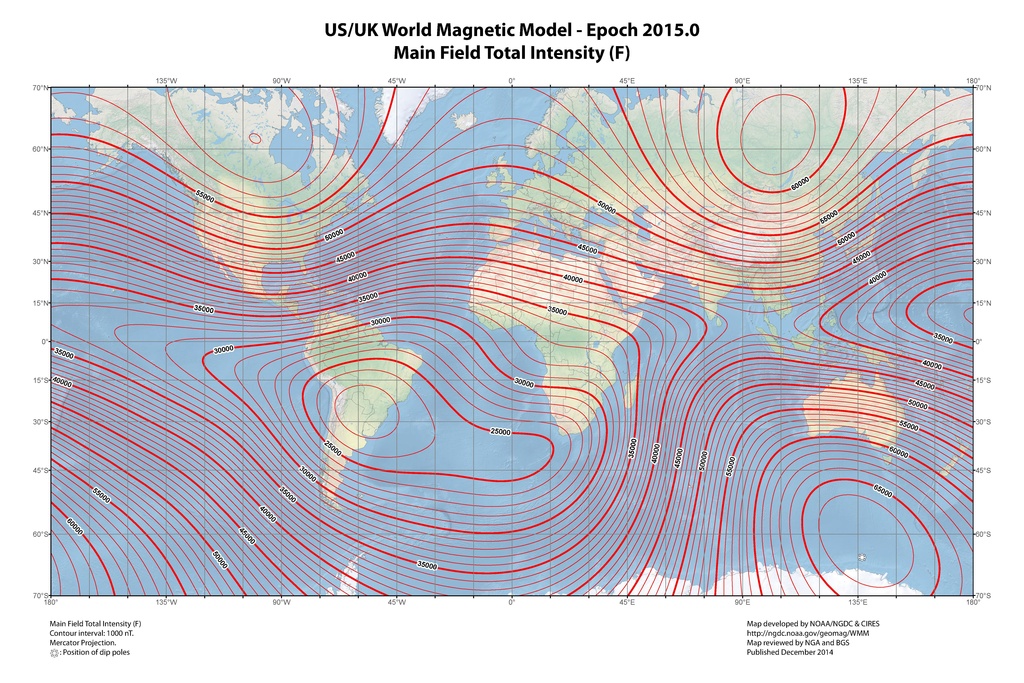

see this world magnetic model is explicit how great is magnetic field in ground of our planet;

My next research will therefore focus on this avenue, which seems to be the only plausible one.

The big question: how to pump this energy, and with what kind of pump controlled by a dam?

 As per WIKI

A telluric current, or Earth current, is an electric current that flows underground or through the sea, resulting from natural and human-induced causes.

These currents have extremely low frequency and traverse large areas near or at Earth's surface. Earth's crust and mantle are host to telluric currents, geomagnetically induced currents caused by changes in Earth's magnetic field due to solar wind interactions with the magnetosphere or solar radiation's effects on the ionosphere.

These currents exhibit diurnal patterns, flowing towards the Sun during the day and towards the geomagnetic poles at night.

Could it be possible that if we send a standing wave into the ground, with a certain power, it could become the carrier of this much greater energy?

Jagau

What we consider to be empty space is merely a manifestation of unawakened matter. N.T.

Jagau posted this 3 weeks ago

The goal in a Don Smith generator is to charge capacitors, regardless of the method used. The resulting RF voltage, as with most inventions, is unusable if it is not stored in capacitors. The construction of a double Tesla coil is necessary for the next steps in the experiments.

I built a very simple and functional Self Resonant Oscillator (SRO) with an N-MOSFET specifically designed for this type of coils and with a sufficiently fast switching time to power and oscillate these double Tesla coils.

Under Experimentation

Jagau

What we consider to be empty space is merely a manifestation of unawakened matter. N.T.

Jagau posted this 3 weeks ago

In this image from one of Don Smith's books, he built two identical coils, blue on top and white on the bottom, with a central coil of only three turns.

This way, it pulses like a half-wave, with a nodal point in the center connected to ground with a variable resistive component. This results in two hot points (maximum voltage) at the ends and 0 volts in the center with maximum current.

Theory and reflexion

By switching between half-wave and quarter-wave modes in the same circuit, a third coil would collect this maximum pulsed current, which would then be stored in capacitors without affecting the input??

Jagau

What we consider to be empty space is merely a manifestation of unawakened matter. N.T.

Jagau posted this 2 weeks ago

A lot of relevant information can be found in this thread.

https://www.beyondunity.org/thread/the-don-smith-effect/?p=19&order=all#comment-3c597e64-36b0-44ec-9df4-b3ce001b8e64

I observed that by isolating the load from the source with a filter at its own oscillation frequency, we do not charge the tesla coil. However, the charging current creates a magnetic field in the removable coil added at the end. An enriching experiment, soon to be demonstrated.

Jagau

What we consider to be empty space is merely a manifestation of unawakened matter. N.T.

Jagau posted this 2 weeks ago

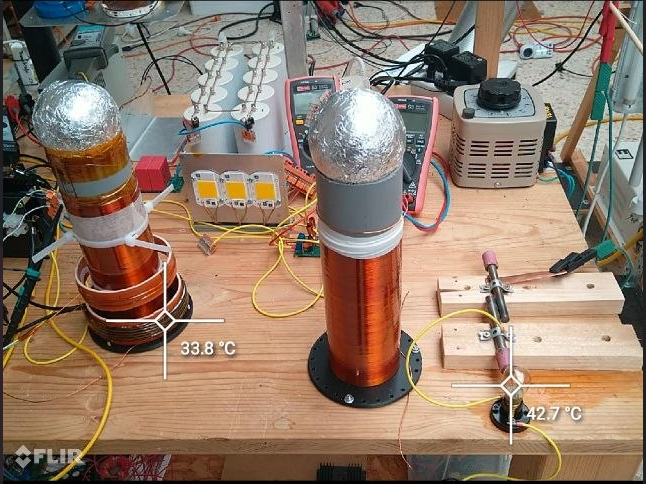

I built this coil assembly with the center point in the middle L1

The grounds on both Tesla Coils (TCs) is therefore also in the middle, with a resonance frequency of about 2.5 MHz a special effect appears on the collection of voltages at the ends.

Jagau

What we consider to be empty space is merely a manifestation of unawakened matter. N.T.

Jagau posted this 2 weeks ago

Several inexplicable things are happening: the PS seems to increase without providing more power; paradoxically, the power increases but doesn't come from the PS; an incandescent bulb lights up easily.

Several things need to be checked, but it's exciting.

Jagau



What we consider to be empty space is merely a manifestation of unawakened matter. N.T.
