This Polish man named Pachuka does incredible things. Watch this video carefully.
He excites the ether with a 9VDC battery and then disconnects it; the circuit becomes self-sufficient, with the ether supplying the voltage to the lamp.
Jagau
What we consider to be empty space is merely a manifestation of unawakened matter. N.T.

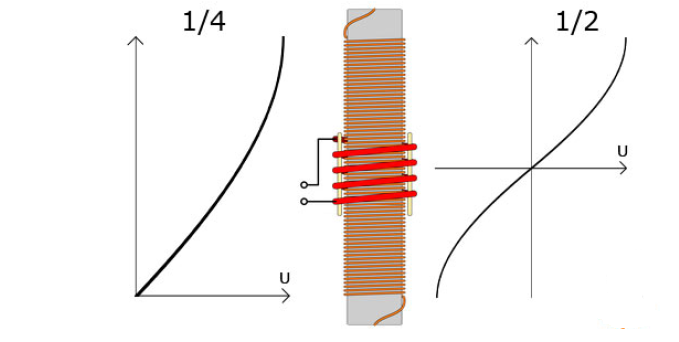

What happens if we disconnect the lower end from ground and place the primary coil (pumping inductor) in the middle? In this case, the secondary coil can operate in half-wave oscillator mode, where both ends become "hot," i.e., they exhibit voltage antinodes, and the node is located in the middle.
like this
Thus the LED lights up in the center and turns off at the ends, this is an excellent way to verify this state.

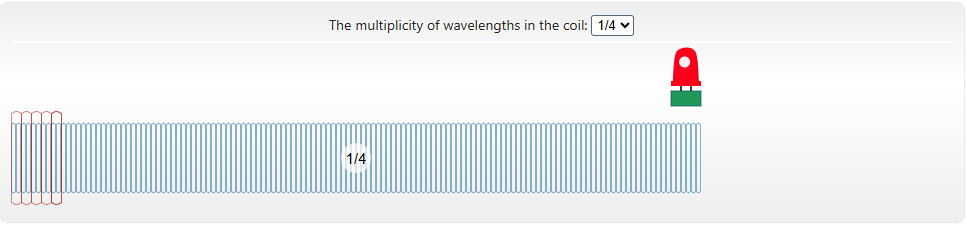

Play with the LED at the end of Gorchilin website here:
https://gorchilin.com/articles/coil/indicator?lang=en
Jagau
What we consider to be empty space is merely a manifestation of unawakened matter. N.T.
TMD and LMD waves are transmitted simultaneously in a Tesla coil. We only need to recall Doc K. Meyl's experiments.
At the resonant frequency (Fr), the primary coil becomes high impedance, leaving voltage from the FG for the two left LEDs and illuminated at full power and the right one slightly lit, this is what the two large coils under the ball transmit TMD wave.
The LMD waves are transmitted by the metallic part, capacitive effecr with our earth ground of the Tx sphere at the top, which is also received by the Rx sphere. If we increase the resonant frquency of your F.G. to Pi/2, the left LEDs turn off and the right one lights up with much more power that when the left LEDs were lit.
Why?
This exchange with the surrounding environment does not affect power consumption at input; as it contracts, this aether vortex releases a large amount of energy, LMD are captured by the right coil, which is tuned in resonance with the left one.
N. Tesla called it the tunnel effect., experiment in progress.
Jagau
What we consider to be empty space is merely a manifestation of unawakened matter. N.T.
"This is a serious piece of circuitry. I appreciate you sharing the schematics with the community. I’m currently evaluating the operational principles and the functional logic behind the design to fully grasp its potential. I’ll be keeping a close eye on your updates. Thank you for the contribution."
Yes, the type of transmitter used with TMD is very power-hungry, unlike those used with LMD.
Just look at cell phones using LMD technology; they require small transmitters with capacitive towers spaced approximately every 30 km. You can transmit with only 0.5 watts in a concrete building and talk to anyone on the planet with this tiny transmitter. Don't try that with a CB radio using TMD; the maximum range is 5 km with 4 watts of power and forget about it, TMD doesn't work in a concrete building nobody will hear you.

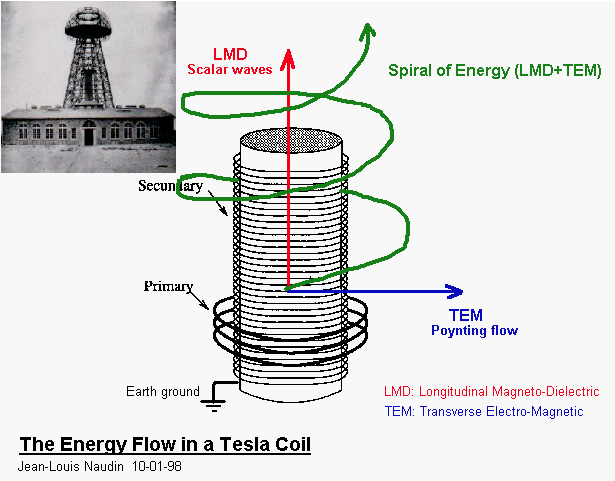

A representation by JL Naudin explaining the TMD-LMD relationship and why the capacitor on top is so important. Look at the top of Wardenclyffe Tower at upper left.
In fact, Nikola Tesla was the first to invent the cell towers we have today, He wanted to transmit energy, which he succeeded in doing, and we have used it nowadays for communications with very little power.
I'll make a short video about Dr. K. Meyl's experiments to demonstrate the low power required for the transmitter.
Jagau
What we consider to be empty space is merely a manifestation of unawakened matter. N.T.

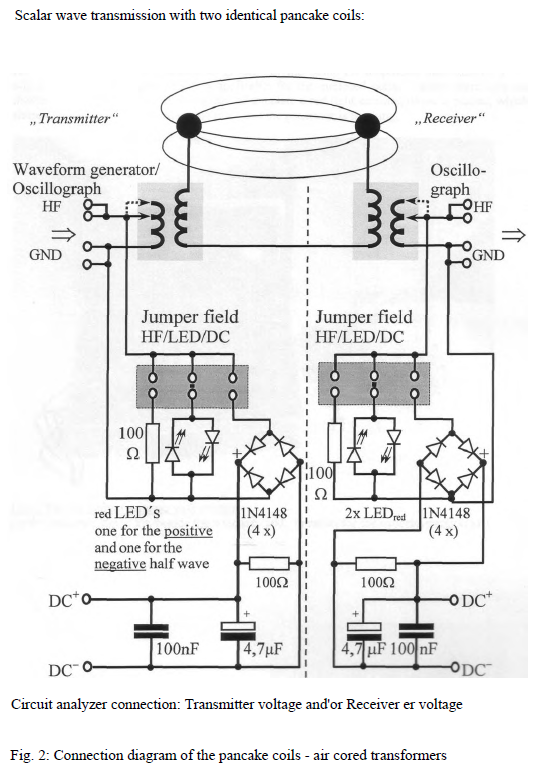

The video in preparation demonstrates an interesting visualization of the longitudinal shock wave LMD as described by Dr. K. Meyl in his book. The most difficult part to understand is that the LMDs are there but cannot be detected by conventional instruments., so Meyls' experiment is an excellent exercise to carry out, I did it with two Tesla coils and not with two pancake coils.
I get immense pleasure from trying all sorts of situations, and thinking about what Pachuka did in his YouTube videos, don't worry, I'll get to it soon. I like to understand before I act.
I think every good researcher should do this experiment of Dr Meyl. The energy transported by LMDs is fascinating to discover and with the presence of the tunnel effect the increase is more than acceptable.
Jagau
What we consider to be empty space is merely a manifestation of unawakened matter. N.T.

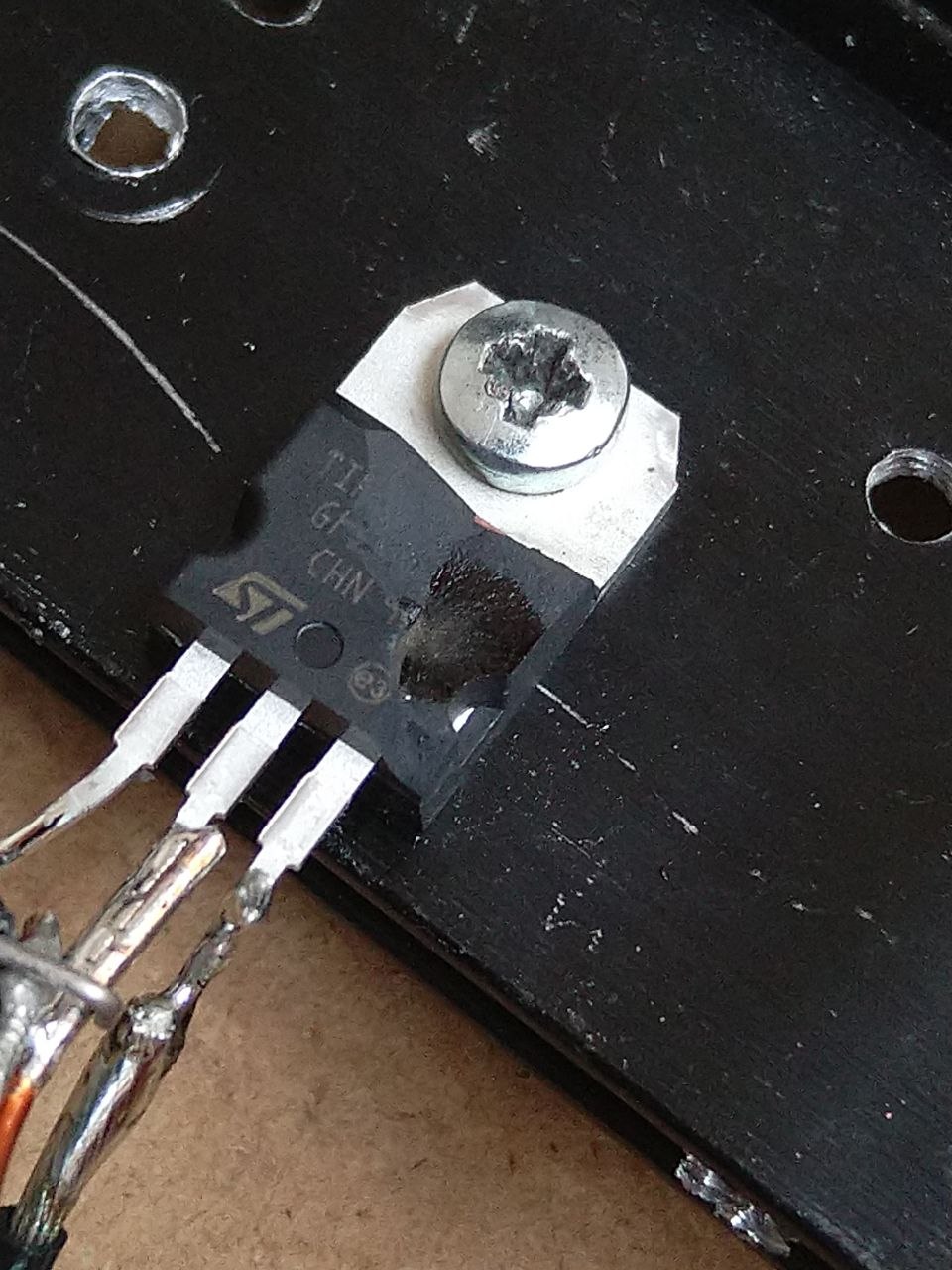

today i started to build this little circuit. for a short moment the BD139 did a brillant job. then i tried with TIP41C which went not well at all 😎
beautiful impact from nowhere with zero input...
maybe tomorrow
still learning
regards
B
Great Bearndorfer.
Don't worry, those who don't experiment never make mistakes. I've made some pretty big ones myself.
I use two 50K potentiometers that I adjust to 27K and 22K.
I added a 1K resistor to each of the two outer legs, making the minimum resistance 1K, and, as I do with a MOSFET, I added two 18V Zener diodes to the base of an NPN transistor or the gate of the NMOSFET. I haven't burned any components since then. It's my fault; I would have had to redo my schematic.
Question: with an AV plug in your fingers, did you get a lot of radiant energy like in my first video with your BD139?
Jagau
What we consider to be empty space is merely a manifestation of unawakened matter. N.T.
i tell you what! it simply is not your fault at all 😎
when i start experimenting with a new circuit it is always a pain. i build many circuits but nnever ever did i build one that works out of the box. this is what i like with this stuff. because at the end i know exactly how and why such thing operates.
i have some avramenko-style devices which i put near the resonance to get visual feedback. but normaly i use probe from scope.
next week i have this 'sukker' running... hahaha....
regards
B
i stopped counting but i fried some hundreds of silicon-components between 2020 till today.

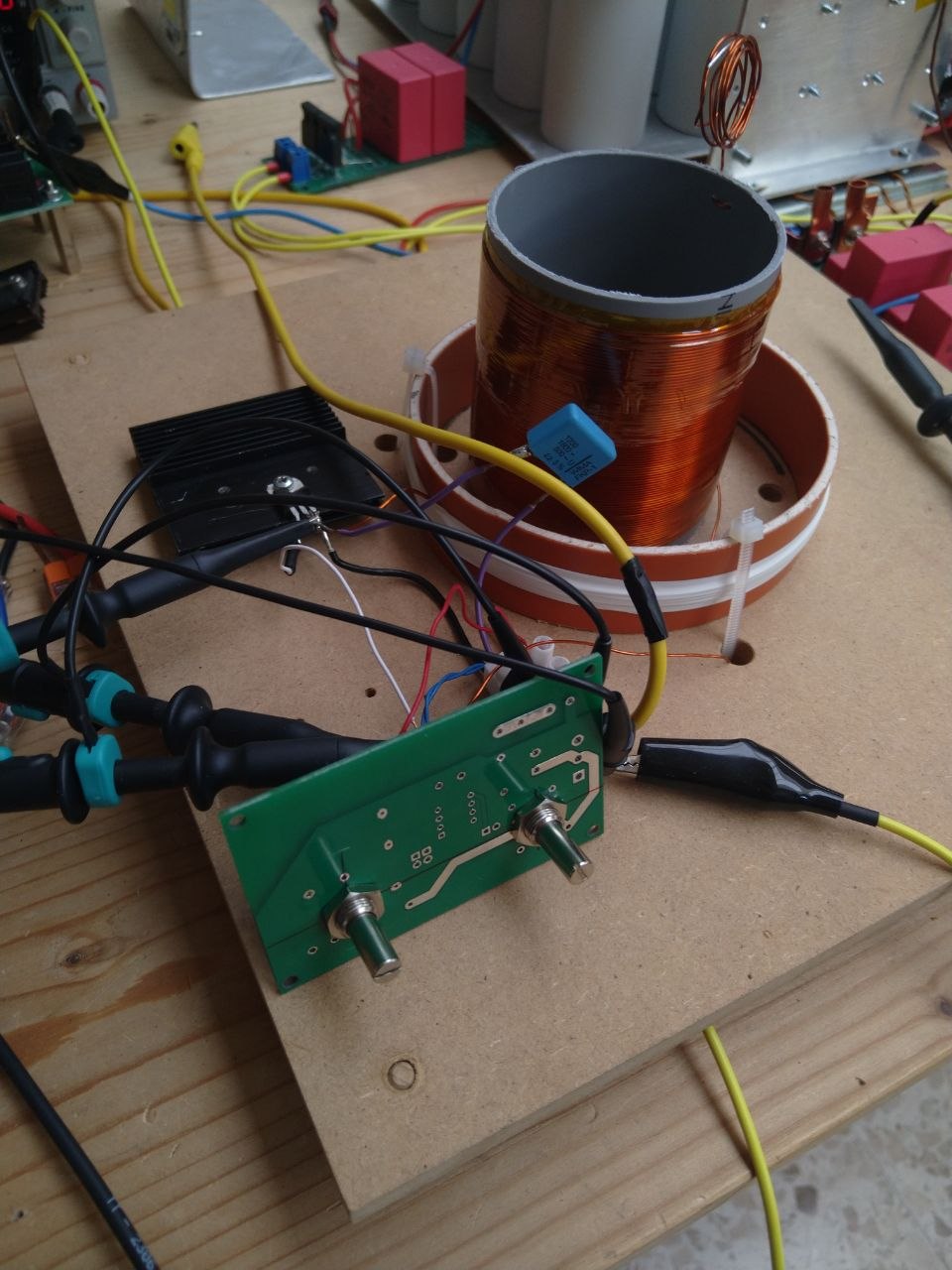

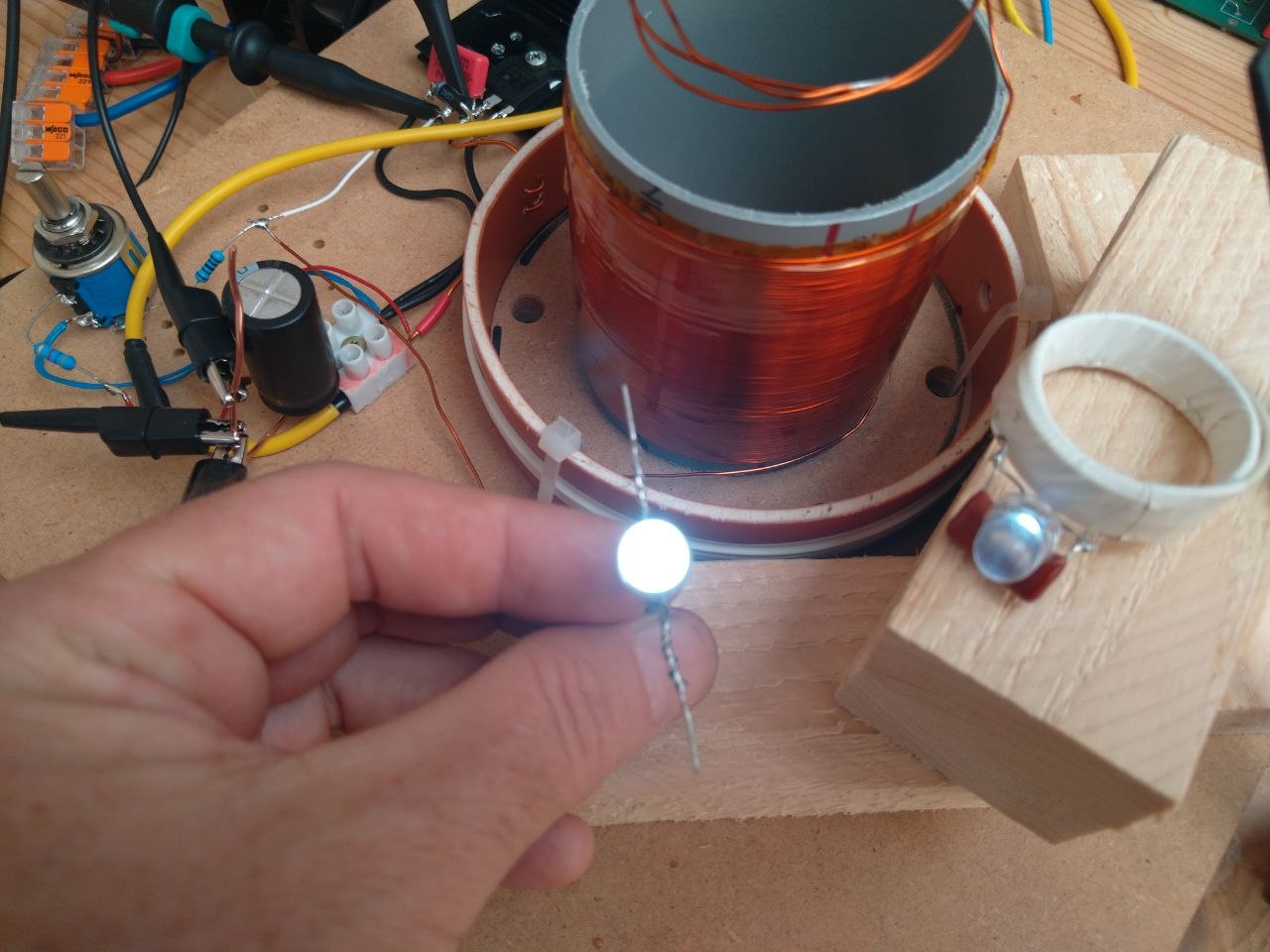

after some modification it works now. because i run out of transistors i have to use mosfets but think this is not essential for having the effect.
the primary side is still nasty.
i will focus on having a sharper pulse for switching procedure. have a nice day B

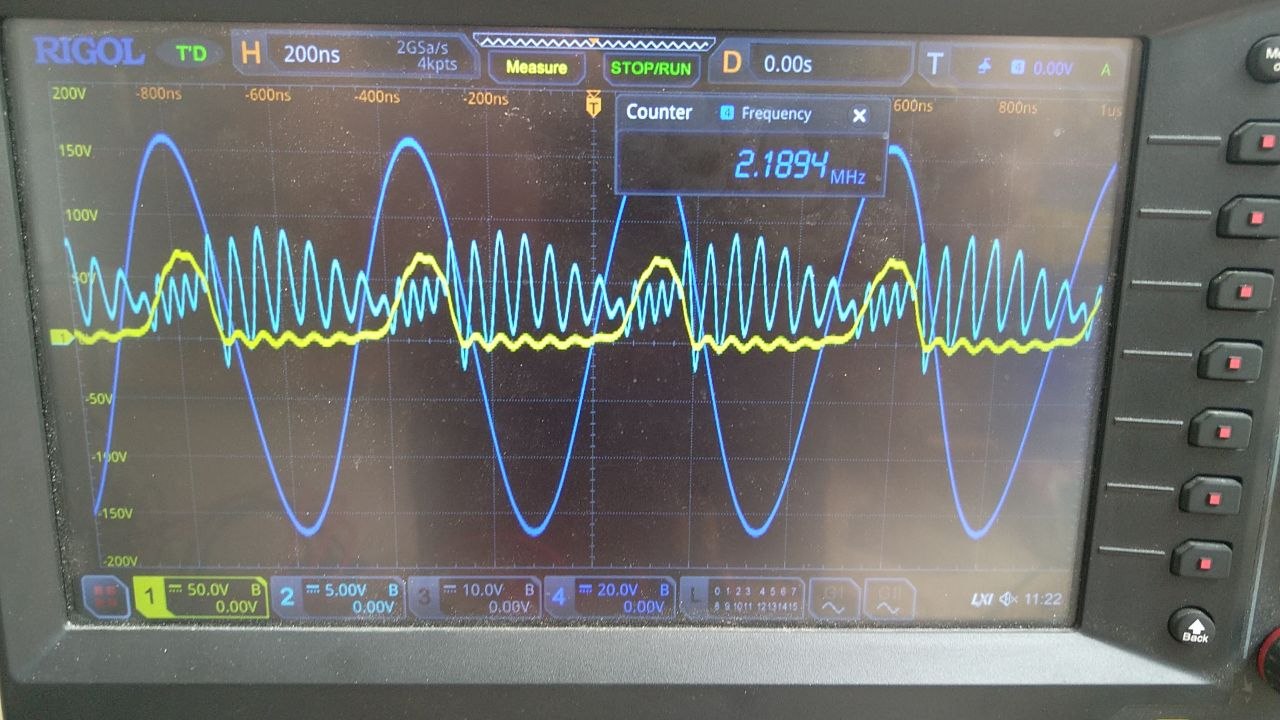

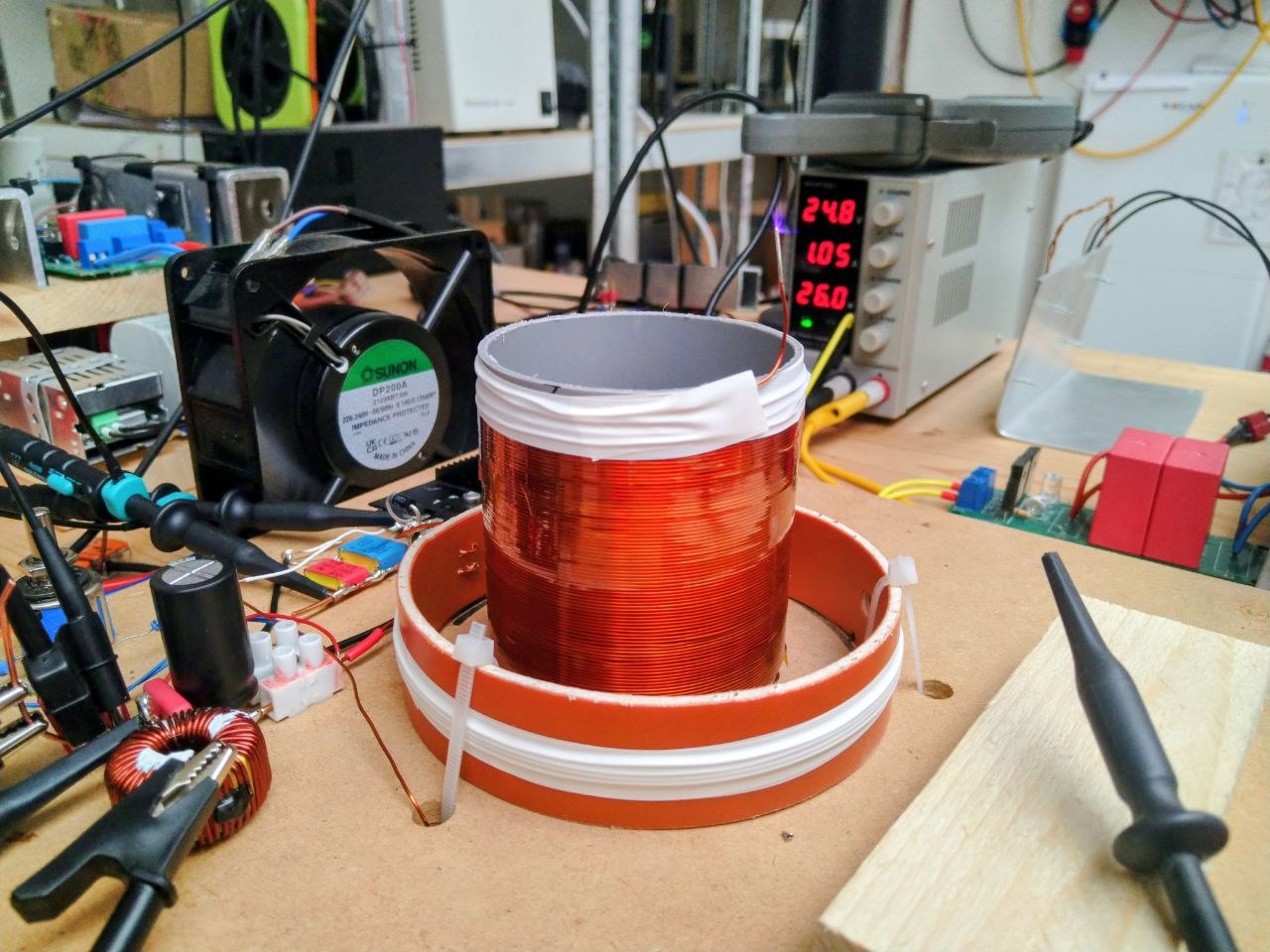

finally i can have some sparkling...

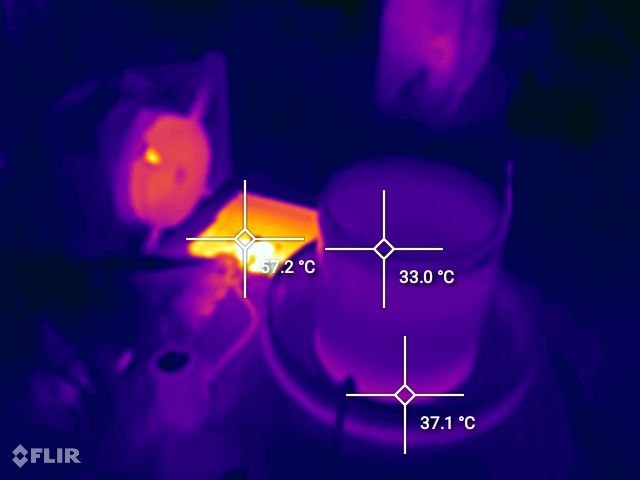

and the temperatures are mostly ok
the dipole is very sensitive to environmental changes. when i went near the coil the resonance starts diminishing. if environment cchanges i have to tune into resonancce again. this seems like a job for a PID.
regards
B
