This is my replication of Jagau's Micro-Generator:
The circuit for those who want to do it.
If you need advice, just ask, I'll be happy to help you.
Jagau
| "If you want to find the secrets of the universe, think in terms of energy, frequency and vibration." | ||
| Nikola Tesla | ||
Hi Jagau,
Absolutely, I know the device is limited by the small metalic surface I use.
But my experiments table has the only ungrounded metalic piece available here at my rented place. And the only grounding connection I have is the one provided by the grounding of the electrical grid of the building.
At home my house's roof have tiles made of concrete but think of the houses having metallic roofs made of metal sheets. If those metallic sheets have good electrical connection between them think of the imense metallic surface of those roofs and how much energy they can harvest.
I think the roof of such house can provide enough energy to power (with continuous light) a bunch of standard LED light bulbs forever. Of course the device should be modified to provide higher voltage but there would be more than enough energy available for that.
For example the yards of those houses can be illuminated for free and forever by LED light bulbs powered by devices like this. Just a practical example of 24/7 free energy implementation.
Fighter
| "If you want to find the secrets of the universe, think in terms of energy, frequency and vibration." | ||
| Nikola Tesla | ||
Just a small update, (as I planned) during the vacation I took the device with me and I tested it without the grounding of the electrical grid.
I just used a clean wire buried deep into the ground. It's true I needed to put some water in that ground for better electrical connection because the ground was very dry (we had several heatwaves in the area).
The device doesn't care if the grounding is the one of the electrical grid or just a wire in the ground, it works fine using the local energy just as Jagau shown to us here. All it cares of is how much metallic surface it has on the input and depending on that it needs some adjustments of the variable resistors to accomodate it with the local conditions.
I tested it at my home location and also at another location when I visited a friend there at his home.
The device should work everywhere and will work forever or at least until one of the components gets old or is malfunctioning. We all know the modern electrolytic capacitors stop functioning after, I don't know, 10-20 years because they dry up.
Regards,
Fighter
| "If you want to find the secrets of the universe, think in terms of energy, frequency and vibration." | ||
| Nikola Tesla | ||
quoting fighter
The device should work everywhere and will work forever
This is a good description of the device at the moment, good news, I found a way to make it a little more powerful by adding a half diode bridge at the input, it charges very quickly.
I will show soon with a schematic.
Jagau
Quoting:Jagau
good news, I found a way to make it a little more powerful by adding a half diode bridge at the input, it charges very quickly.
Very interesting, I thought the only way to make it more powerful is to increase the metallic surface available on the input of the device. So there is another way ! š
Thanks Jagau !
| "If you want to find the secrets of the universe, think in terms of energy, frequency and vibration." | ||
| Nikola Tesla | ||
Yes Fighter
It's something that makes me dream of this simple little circuit. You have to take the time to have fun from time to time. When I am tired of thinking about other experiences in progress I come back with this one, it relaxes my mind. It's my way of taking my mind off things. It's like a cook who improves his recipe.
This little generator doesn't require anything, it just worked, so I had the idea of increasing the power by adding a third ground different from the other two, add a half bridge and it worked, I'll give you a little diagram.
Jagau
Must add a third different from two other ground point
LED wil flash 3 times faster, with D8 and D9

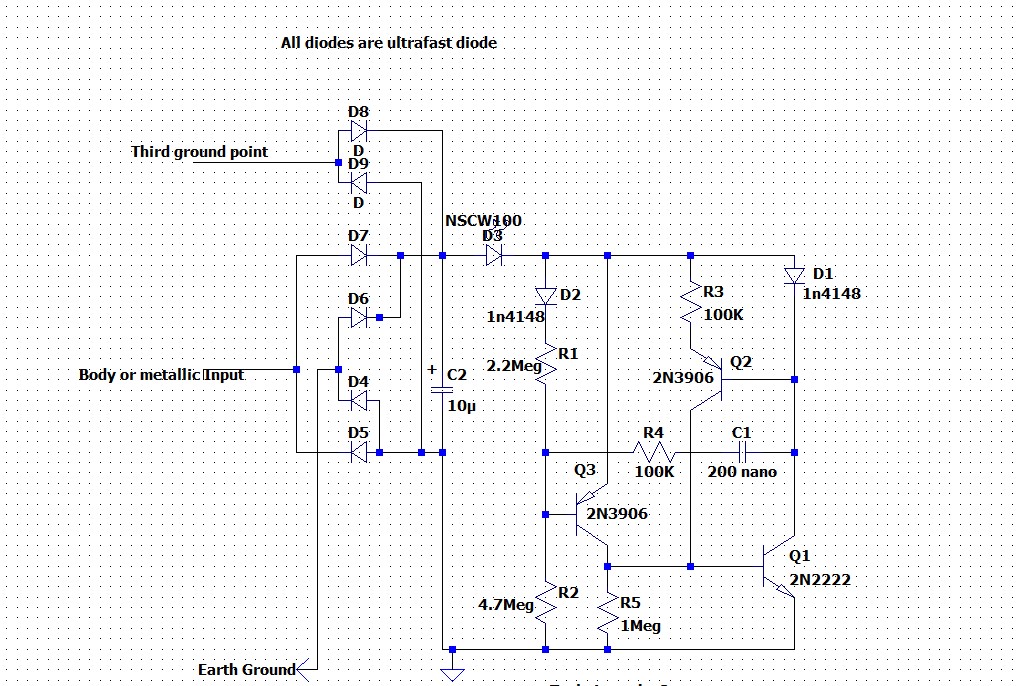

Here is schematic
Jagau
Hello Fighter
A short demo video, when the third ground is not connected and secondly when the third ground is connected. We can see the charging of the capacitor is faster as well as the frequency of the flash which almost triples.
You can see the two grounds on each side of the board and the difference when I connect the third.
The final goal is to make it permanent without flash, as you said, a small eternal garden lamp.
Funny experiment to do for everyone.
Jagau
Hi Jagau,
Very nice !
How many additional connections can be added in order to get close to continuous light ?
And another question for clarification: the third connection is connected to a different point to the ground or is it connected to another metallic surface ? Based on the fact that you use the term "ground" in its name I suppose it's another connection to Earth but I just want to be sure about this.
Thanks,
Fighter
| "If you want to find the secrets of the universe, think in terms of energy, frequency and vibration." | ||
| Nikola Tesla | ||
hey fighter, good question
How many additional connections can be added in order to get close to continuous light ?
By experiment you will surely be able to do it.
Yes the metal grounds must be independent.
Jagau
Sorry for the late reply, I have some available time and I'm working on the coils for the DSE experiment.
From my experiments with the device I saw more energy can also be gathered by increasing the metallic surface on the input. The effect is the same: increased frequency of the flashing or brighter luminosity of the flashes. Depending on the settings (from the variable resistors) we can use the increased energy on input for one or another.
Is this method (additional separate metallic surface and half diode bridge) more effcient than connecting the additional metallic surface to the first metallic surface ? Just asking, maybe this is more efficient than just increasing the first metallic surface.

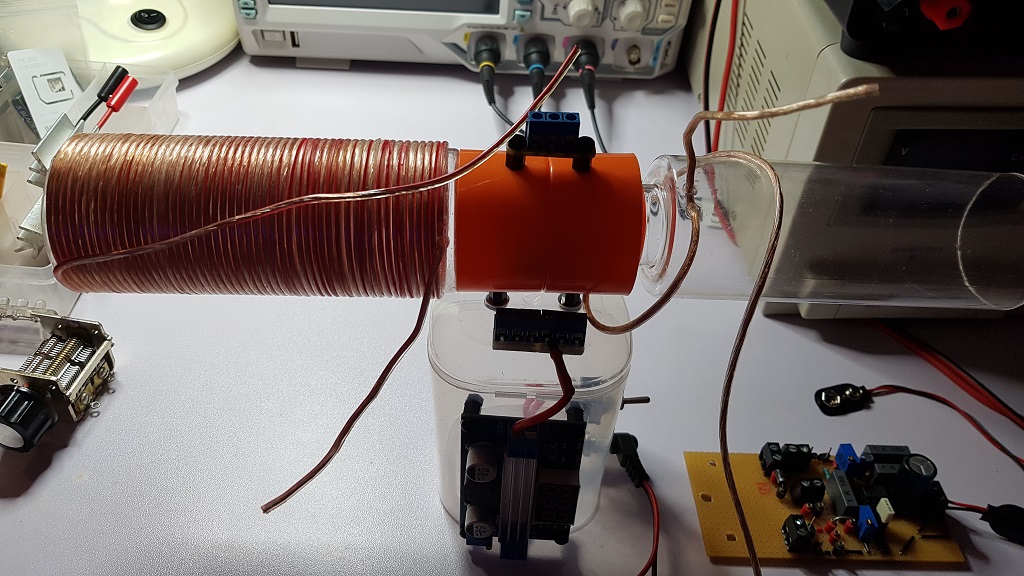

I will return to the work on the coils, the first half of the coil is ready but I still have work to do on the second half... š
I need to make precise measurements (wire length and the number of turns) as my goal is to build the two halves of the coil identical so their natural resonant frequency to be the same or as close as possible.
That will be very useful later as I'll use them in multiple scenarios as Don Smith shown to us.
I'll come with more details in the DSE thread when I finish and I make the measurements (their resistance and capacitance).
Regards,
Fighter
| "If you want to find the secrets of the universe, think in terms of energy, frequency and vibration." | ||
| Nikola Tesla | ||
