Fighter's Micro-Generator Replication

  • 4.9K Views
  • Last Post 22 November 2023
Fighter posted this 26 February 2023

This is my replication of Jagau's Micro-Generator:

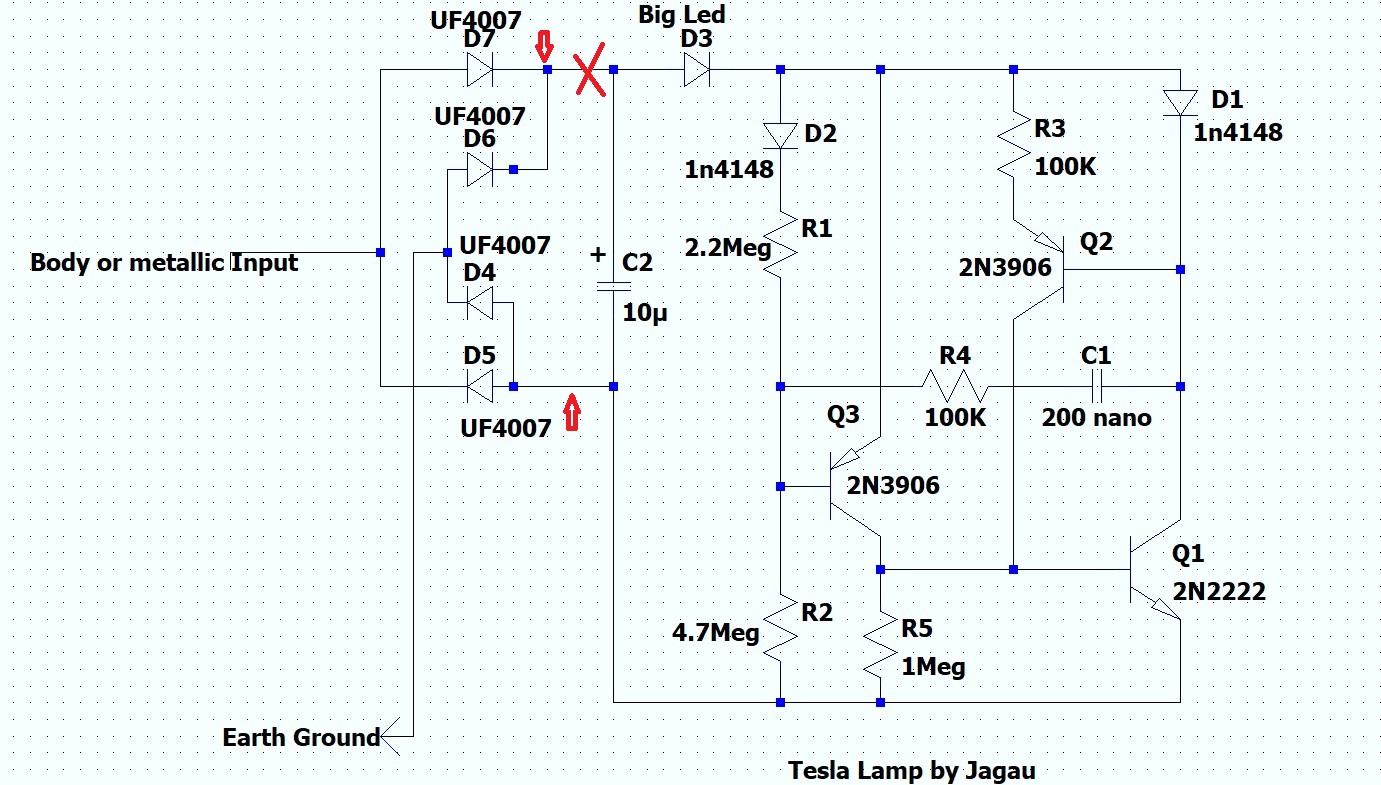

The circuit for those who want to do it.

If you need advice, just ask, I'll be happy to help you.

Jagau



"If you want to find the secrets of the universe, think in terms of energy, frequency and vibration."
Nikola Tesla
Order By: Standard | Newest | Votes
Fighter posted this 26 February 2023

This is my replication of Jagau's Micro-Generator:

The circuit for those who want to do it.

If you need advice, just ask, I'll be happy to help you.

Jagau



"If you want to find the secrets of the universe, think in terms of energy, frequency and vibration."
Nikola Tesla
Fighter posted this 08 November 2022

Thanks, I may ask for help, I've built one but probably I did something wrong.

Then we left the old aboveunity site and I canceled the project.

I'll need to rebuild it and double-check the schema.

Right now the LED's light is continuous and very weak:

I will come with updates after I'll find some time to rebuild it.

Regards,

Fighter

"If you want to find the secrets of the universe, think in terms of energy, frequency and vibration."
Nikola Tesla
Jagau posted this 08 November 2022

No problem fighter, if you have the time do this little test to check if the voltage from the environment enters your circuit.

At the place where there is an x, cut the circuit there and place a DDM on the + at up and below the -whre you see red arrows. Install your two grounds, and you should already read a DC voltage here on your DDM below 4 volts .

If you do not have any voltage maybe one of your diodes is badly polarized,

If you have DC voltage, the problem is after the X follows your voltage.


One thing, do not use a schottky diode for the bridge, rather use ultra fast diodes, it's better because we are in very very low voltage and current.
Jagau

Fighter posted this 08 November 2022

Thank you very much Jagau, that's what I'm gonna do first.

Fighter

"If you want to find the secrets of the universe, think in terms of energy, frequency and vibration."
Nikola Tesla
Jagau posted this 22 February 2023

Hi Fighter

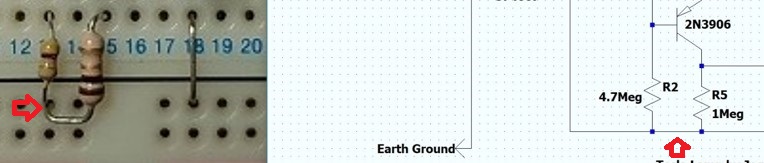

Maybe this connection is missing here on the junction of the two resistors??

We can't see well but the 4.7M and 1meg junction must be grounded look at this it may be the bug

Jagau

Fighter posted this 22 February 2023

Hi Jagau,

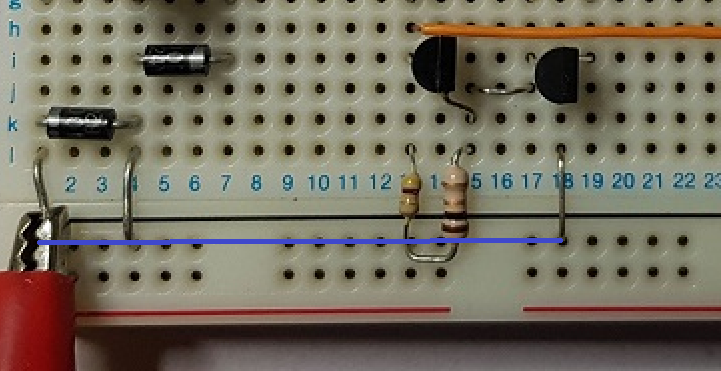

That junction is connected to the ground, I drawn a line showing how the holes are connected in that section:

Ignore the red color of the connector, I tried both ways switching the black and red connectors, the behavior is the same.

I think the best approach to find the issue is to create a new thread with my replication (in order to not derail this thread), to take very close photo of the replication (so I can have a bigger picture) and to draw all the connections like I did with the connection above.

That would help in comparing the circuit with the schema and eventually identify the issue.

If that doesn't work the most radical approach is to remove everything from the board and start rebuilding it.

Right now I don't have too much time to do these as I have a lot of work to do at job and also to create a declaration for the court in the trial I told you about, most likely I'll have time to do all these in the weekend.

Regards,

Fighter

"If you want to find the secrets of the universe, think in terms of energy, frequency and vibration."
Nikola Tesla
Jagau posted this 23 February 2023

Hi Fighter

Ok the next test will be this one, cut the diode connection at the top as in the example here and you should have a few volts at the output of your bridge?



otherwise a diode is faulty.





Jagau

Fighter posted this 26 February 2023

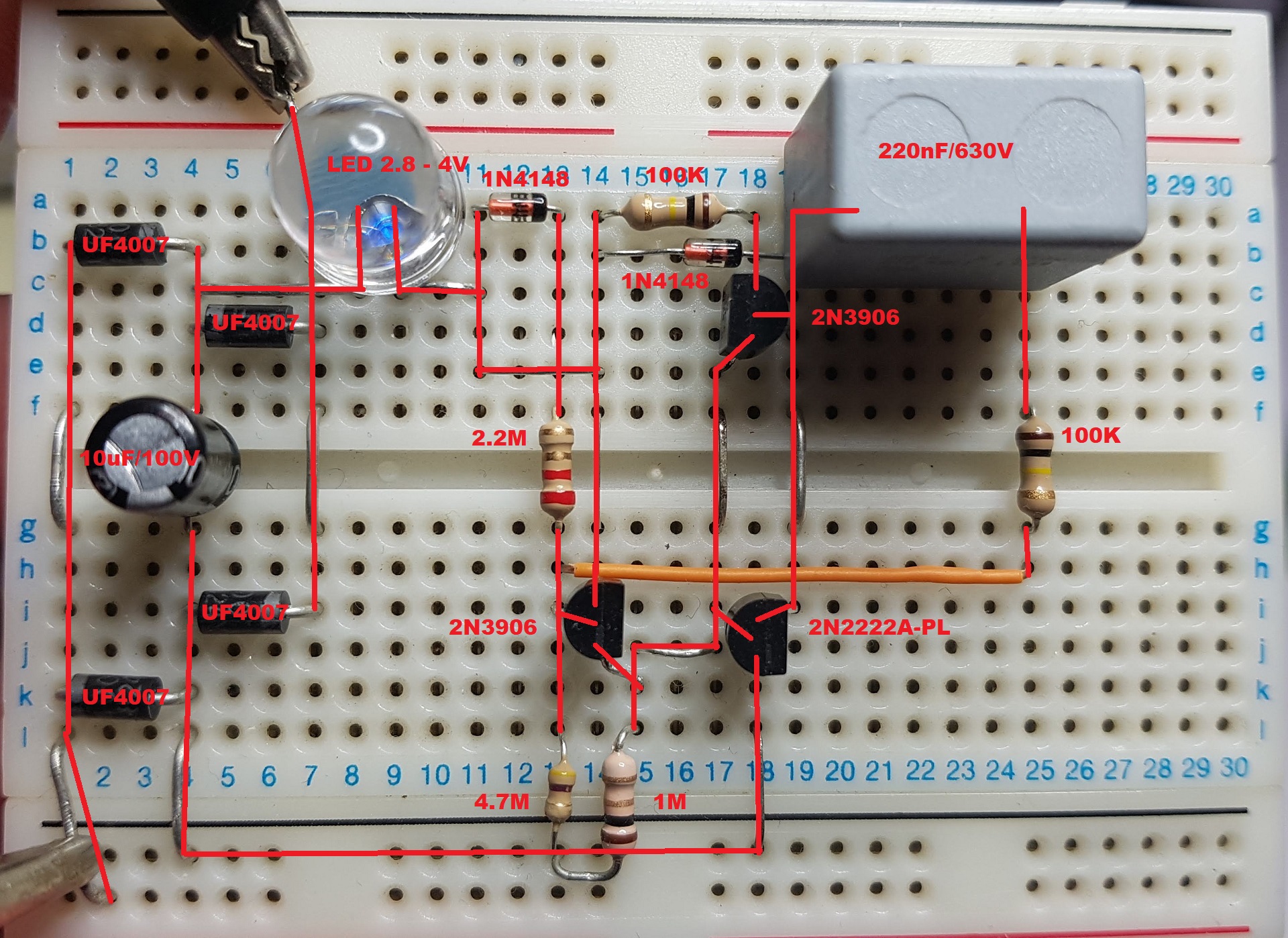

Today I took a close photo of the device and I painted the connections:

It will be useful to check if the circuit is built correctly according to the scheme.

I checked the order on the store's site, this is the list of components:

While checking the order I found that I mistakenly ordered 2.2, 4.7 and 1 ohm resistors. In the order there are no 2.2, 4.7 and 1 Mega-ohm resistors as they should be. This is what happens when ordering electronic components after midnight when being tired... 🙂

Jagau, I didn't tried yet the test you recommended as most likely this is the cause of device's malfunction. I'll search to find and order correct resistors then I'll see how it goes and if there are additional issues.

Regards,

Fighter

"If you want to find the secrets of the universe, think in terms of energy, frequency and vibration."
Nikola Tesla
Jagau posted this 27 February 2023

Very good job Fighter, you're almost there.
Mine has been flashing for almost two years now and it has never stopped.
I have good news coming, I'm waiting to see your success, congratulations
Jagau

Fighter posted this 01 March 2023

Thank you Jagau, let's hope those wrong resistors are the only issues.

The store sent confirmation that the shipment (containing the resistors and other small additional components) was taken by the courier, hopefully tomorrow I'll receive it.

Regards,

Fighter

"If you want to find the secrets of the universe, think in terms of energy, frequency and vibration."
Nikola Tesla
Fighter posted this 05 March 2023

Yesterday I received the shipment, unfortunately the store didn't put in the box the 2.2M resistors so I needed to improvise with 2 x 1M resistors (I ordered some extra pieces of each type).

The device is functional now and here is the video:

In the video you can notice the improvised 2 x 1M in series, I'll replace them when I'll order components again 🙂

The pulsing light is very strong and it can be seen in the dark on all the walls of the room. Looking directly at the LED gives the effect of blinding for a few seconds.

You'll notice the pulses go faster when I touch the metalic edge of the desk with my finger, that's extra-energy provided by my body.

Also the device seems to be very sensitive, if you watch carefully you'll notice the pulses are faster when I take the device in my hand to show it to the camera at some point. There is no direct contact between my hand and the circuit but still the pulses are faster at that moment.

This is a replication so of course all the credits go to Jagau !

Feel free to bring the good news you mentioned Jagau ! 😊
